FD-V166
| Name | FD-V166 | ||
| Pattern | FD-V166 | ||
| Number of Axes | 6 | ||
| Max. Payload Capacity | 166 kg | ||
| Positional Repeatability | ±0.051mm | ||
| Driving Capacity | 18kW | ||

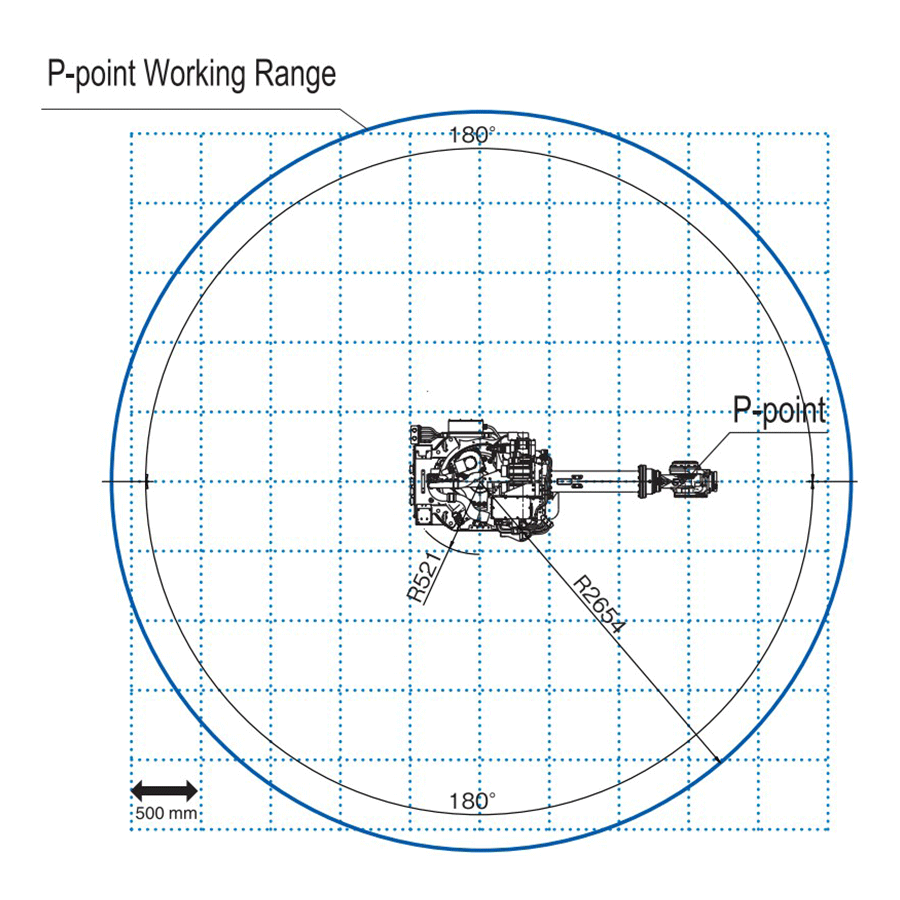

| Working Range | Arm | J1(Rotation) | ±180° |
| J2(Lower arm) | -80° ~ +60° | ||
| J3(Upper arm) | -146.5° ~ +150° | ||
| Wrist | J4(Swing) | ±360° | |
| J5 | ±135° | ||
| J6 | ±360° | ||
| Max. Speed | Arm | J1(Rotation) | 2.18 rad/s {115°/s} |
| J2(Lower arm) | 2.01 rad/s {105°/s} | ||
| J3(Upper arm) | 2.11 rad/s {113°/s} | ||
| Wrist | J4(Swing) | 3.14 rad/s {140°/s} | |
| J5 | 3.02 rad/s {133°/s} | ||
| J6 | 4.54 rad/s {200°/s} | ||
| Wirst Allowable Load | Allowable Moment | J4(Swing) | 951 N・m |
| J5 | 951 N・m | ||
| J6 | 490 N・m | ||
| Allowable Moment Of Inertia | J4(Swing) | 88.9kg・m² | |
| J5 | 88.9kg・m² | ||
| J6 | 45kg・m² | ||
| Arm Cross-sectional Area | 6.58m2 x 360° | ||
| Ambient Temperature / Humidity | 0~45°C﹑20~85%RH | ||
| Mass (Weight) | 1010 kg | ||
| Upper Arm Max. Carrying Capacity |
45kg (max90kg) | ||
| Setting method | Floor | ||
