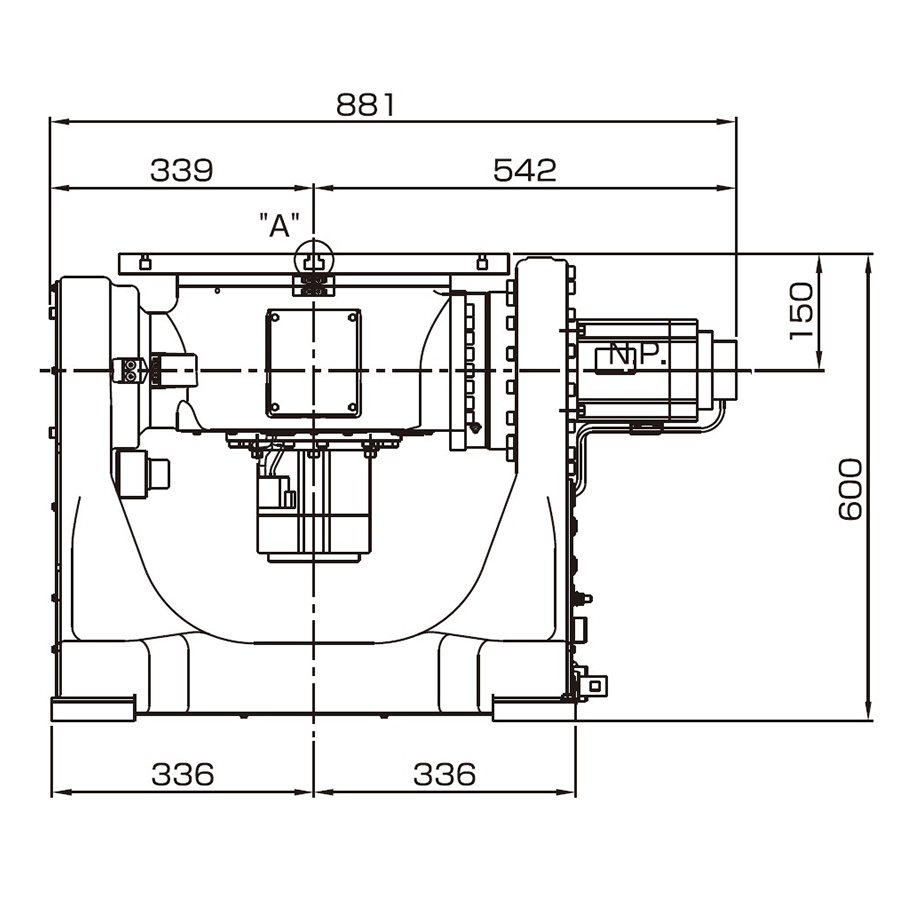

AII-2PF300 2-AXES DOUBLE SUPPORT POSITIONER

  • Increasing productivity due to faster speed
  • Can be used to build varied jig systems with a large degree of positioning flexibility
  • A hole through the center of the rotary table, enabling cables and hoses to be routed through easily
Name  Robot 2-Axes Double Support Positioner
Model Name AⅡ-2PF300
A2PF301-JNN
Max. Payload Capacity 300kg
Rotating Speed 3.1rad/sec(180°/sec)
Tilting Speed 2.2rad/sec(125°/sec)
Rotating Torque 294Nm
Tilting Torque 882Nm
Position Repeatability ±0.08mm
(Position at R250mm)
Stop Position Random
Mass (Weight) 260kg
