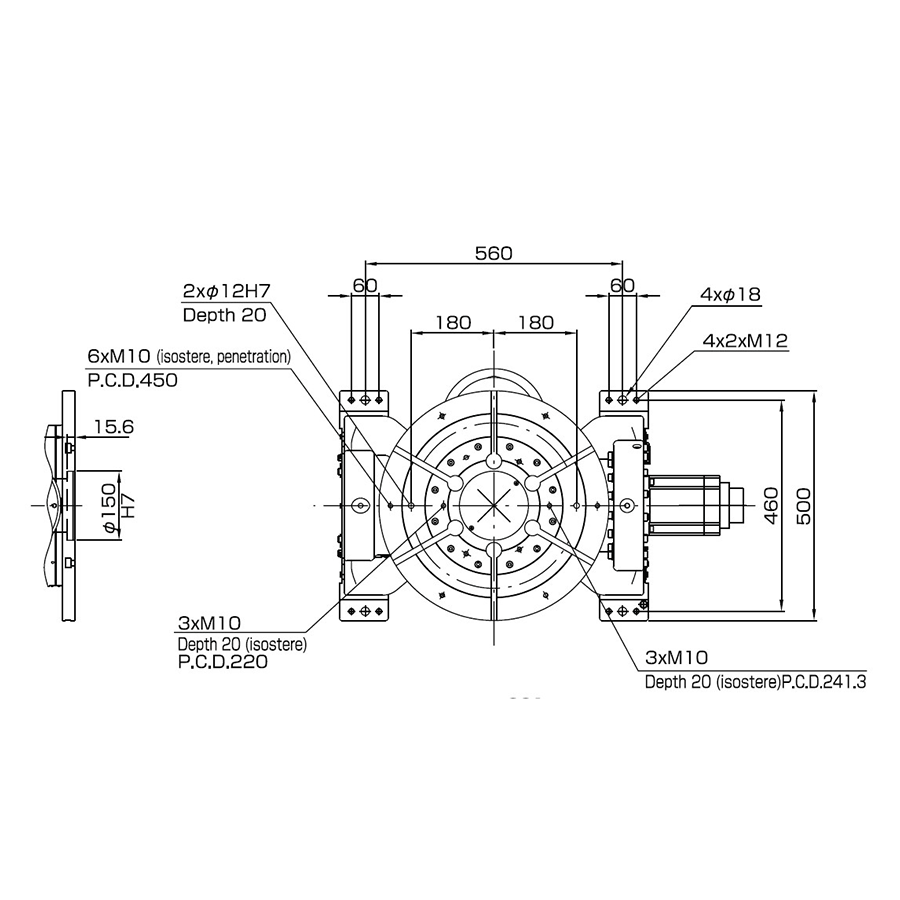

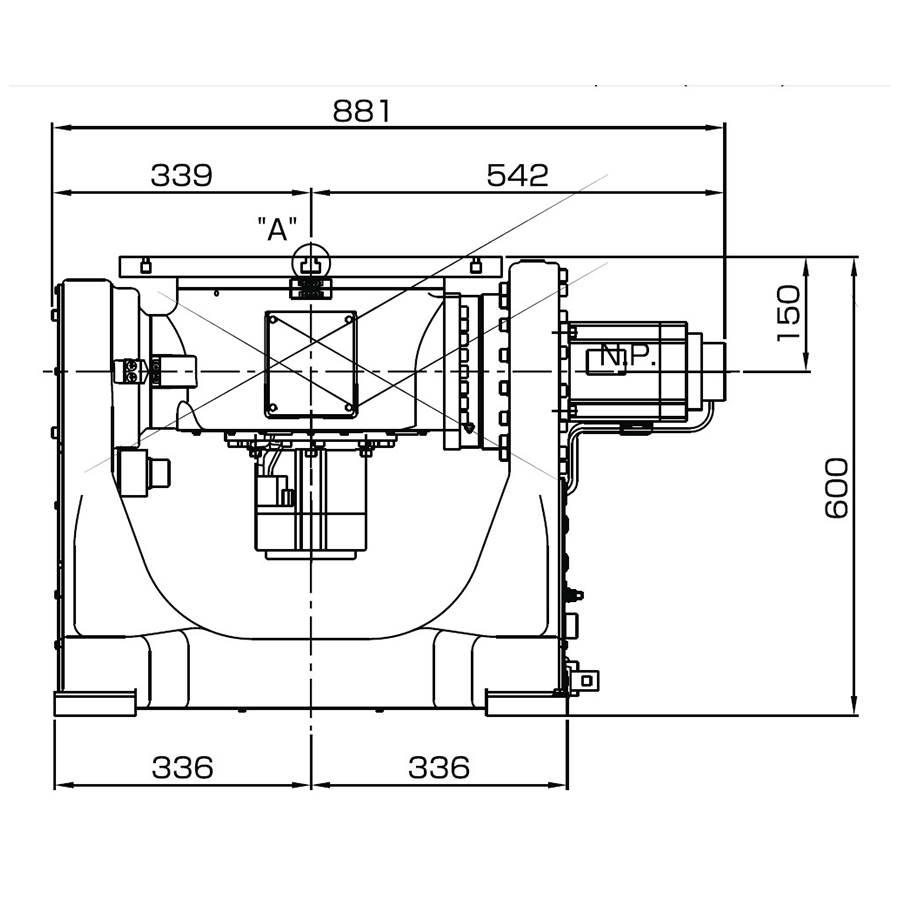

AII-2PF500 2-AXES DOUBLE SUPPORT POSITIONER

  • Increasing productivity due to faster speed
  • Can be used to build varied jig systems with a large degree of positioning flexibility
  • A hole through the center of the rotary table, enabling cables and hoses to be routed through easily
Name  Robot 2-Axes Double Support Positioner
Model Name AⅡ-2PF500
A2PF501
Max. Payload Capacity 500kg
Rotating Speed 2.8rad/sec(162°/sec)
Tilting Speed 1.5rad/sec(84°/sec)
Rotating Torque 392Nm
Tilting Torque 1347Nm
Position Repeatability ±0.08mm
(Position at R250mm)
Stop Position Random
Mass (Weight) 260kg
