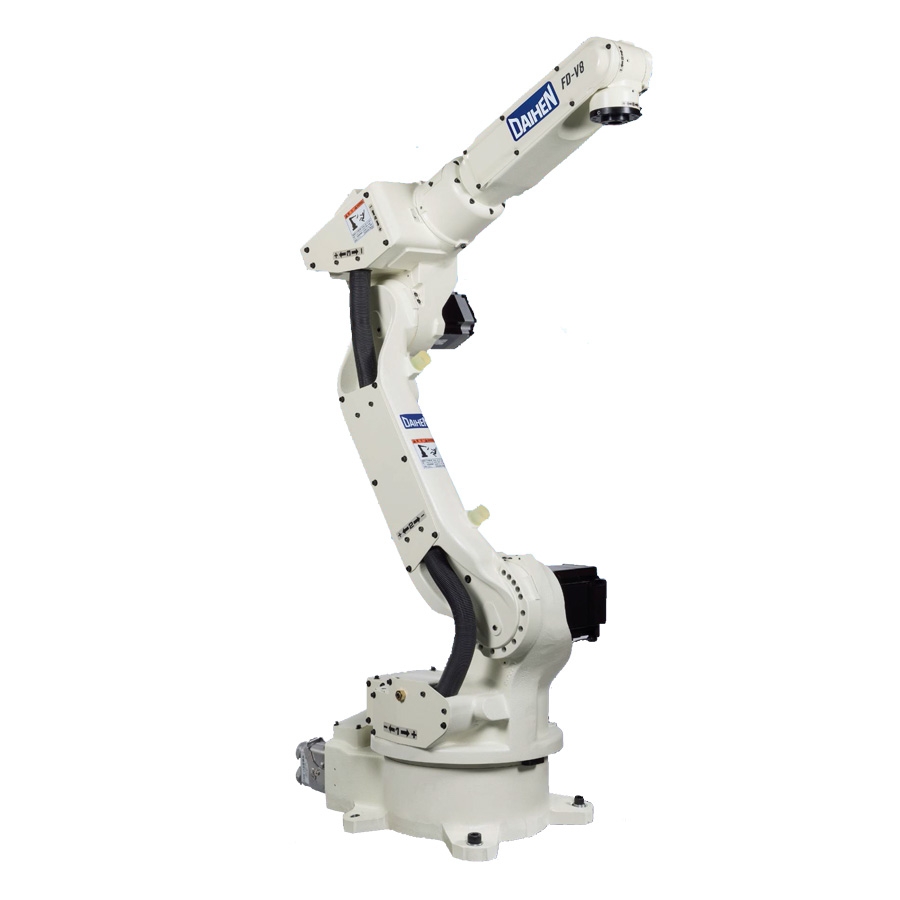

FD-V8 Arc Welding Robot

  • Due to the industry's fastest speeds, cycle times are reduced.
  • Slimmed lower arm and reduced rotating radius
  • Avoiding the interference with jigs or workpieces.
  • All cables required for Synchro-feed welding are also built in the lower arm.
Name FD-V8
Construction NV8
Number of Axes 6
Positional Repeatability 8 kg
Wrist Pay Load Capacity ±0.08 mm
Driving Capacity 3016 W
Working Range Arm J1(Rotation) ±170°(±50°)
J2(Lower arm) -155° ~ +90°
J3(Upper arm) -170° ~ +190°
Wrist J4(Swing) ±180°
J5 -50° ~ +230°
J6 ±360°
Max. Speed Arm J1(Rotation) 4.19 rad/s {240°/s} (3.32 rad/s {190°s})
J2(Lower arm) 4.19 rad/s {210°/s}
J3(Upper arm) 4.01 rad/s {210°/s}
Wrist J4(Swing) 7.50 rad/s {420°/s}
J5 7.50 rad/s {420°/s}
J6 11.00 rad/s {620°/s}
Wirst Allowable Load  Allowable Moment J4(Swing) 17.6 N・m
J5 17.6 N・m
J6 7.8 N・m
Allowable Moment Of Inertia J4(Swing) 0.43 kg・m²
J5 0.43 kg・m²
J6 0.09 kg・m²
Arm Cross-sectional Area 3.11 m²  x 340°
Ambient Temperature / Humidity  0~45°C﹑20~80%RH
Mass (Weight)  140 kg
UpperArm Max. 10 kg
Setting method Floor,Wall or Ceiling
